Layout of the sleeping area

Layout : Van Conversion Interior

Layout of the sleeping area is a bit clever.
Before you go barking at this design like it’s just shat on your lawn please bare with me.

The view below is looking from sliding side door to the rear of the Mercedes sprinter.  This layout section encompasses only the sleeping areas.  It fulfils the requirements to comfortably offer  space for a family of 4 to cohabit and not rip each others throats out.

The clever bit of design is an old boat bunk construction technique. Here’s an example used in a Monte Carlo Gin Palace. The beds are only full height from the waist up and your legs slide into a space only as high as your hips are wide. Importantly this enables you to sleep on your side or roll over without getting wedged or tearing your kneecaps off.

Using this space saving technique  3 tiers of sleeping can be cunningly shoe-horned into the available area.

This means that the kids each get a fixed, private bunk in which they can hide / sulk / spew to their little hearts content. Of course this also means that when it all gets too much  the grown ups can  stuff their kids into a small hole and social services haven’t got a leg to stand on.

As for the layout of the double bed its designed so adults can sit up under the top bunk and use the top step as a place to stick a soul-sucking laptop device for watching Frozen should you run out of bullets.

The kids top bunk is accessed by the power of magic. We’ve not worked that out yet – maybe some rock-climbing handholds or a ladder arrangement. Failing that just pick ’em up and chuck ’em in.

van layout from front

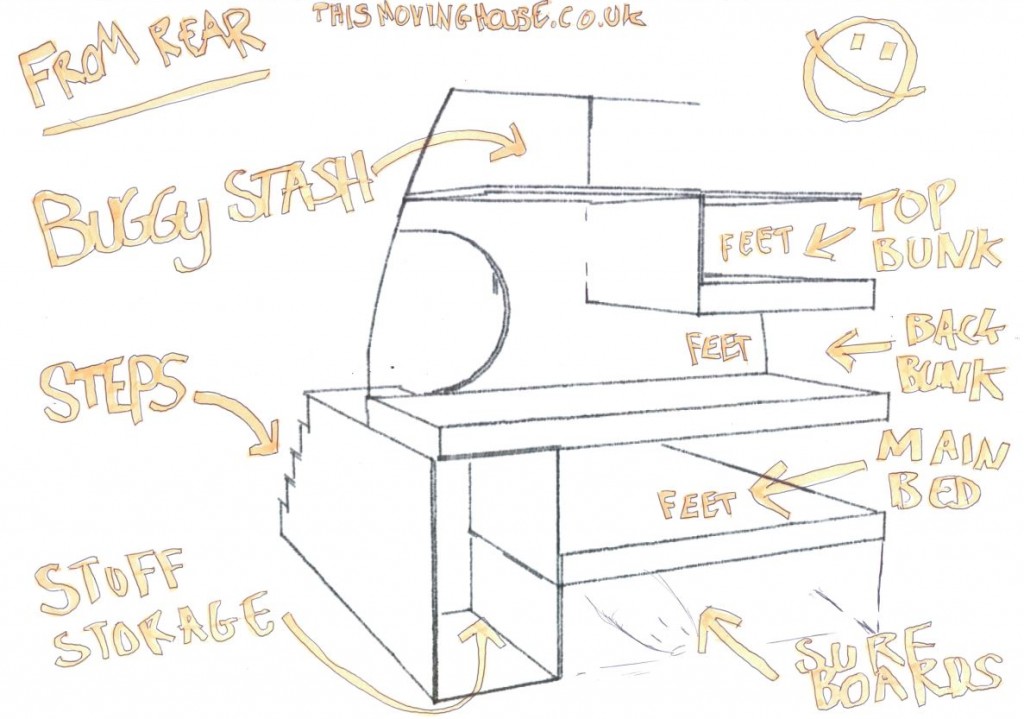

Van Conversion Interior Layout :Rear

The rear view shows a bit more detail as to how the “feet stacking” layout works and also shows the ample storage space for surfboards which live under the fixed bed.

At the top of the storage area is a space designed for stashing a particularly large, and very useful buggy. This won’t be needed forever but its essential to create a space for such a bulky thing.

Once the kids have grown up enough or been sold into slavery this area will be filled with guns, drugs, booze, large amplifiers, suitcases full of money.
You know, all the trappings of a footloose and youthful lifestyle.

layout van sketch annotated rear
Van Layout From Rear

11 thoughts on “Layout of the sleeping area”

  1. I hope you reached your target for the van.

    I have a question regarding the sleeping set up, how did you calculate the dimensions. i am in the process of buying a sprinter, i am getting the inside 3d scanned so i can cad the interior.

    I have been long at the sketches, is this a known set up or your own design. i think it works very well.

    regards jon

  2. wow really love your work…. one question tough, the top shelf in the back, what is that meant for? doesn’t it make the van unstable if you put a lot of weight up there?

  3. Perfect, clever design, trés chique. But how about ventilation in sleeping areas? I am sure you think about that. Can you please explain?

  4. Pingback: Brilliant camper van conversion uses space-saving boat design ideas | Finance Advice Blog

  5. Using the Mercedes Sprinter is the base is an excellent idea! This is a great design for 2 adults and 2 young children. I would prefer to have one rear door in the rear have a window for the driver to see through – with a heavy curtain when camping – say keep the large bed downstairs and one bunk bed up high on one side for 1 child or a guest. I also think a compost toilet would be a great addition == maybe a simple outdoor shower, also. Doof job! You have me thinking!

  6. Lovely design but since there’s a kitchen and sleeping areas, curious if a bathroom would fit somewhere in these plans.?

  7. Brilliant, well thought out and beautiful design combined with comic narrative. Really enjoyed finding this page – thank you!
